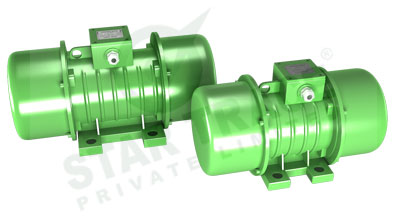

Vibratory Motors

Vibratory Motors img

INTRODUCTION:

STAR TRACE Vibratory motors are Robust, Reliable, High Loadable, Quiet Running and require no maintenance.

STAR TRACE Vibratory motors are totally enclosed 3Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both ends of the shaft, to set up vibrations during rotation. The design of shaft and the selection of bearings has been carefully done to withstand heavy radial loads.


USES:

Technical Data:
Centrifugal Force Range:From 42 to 14250N
Operating torque range suitable for vibrating units:From 3.6 to 3600 Kgs.
Working weight range:From 1 to 6000 Kgs.
Power connection:From 3Phase current with 50 Hz 415V A.C.
Rated consumption:0.1 to 10KW.
Ambient temperature:Upto 60 deg.C
Degree of protection :IP 65as in DIN 40 050, P.2
or
IP 55as in DIN IEC 34, Part 5.
Insulation class:F class.
